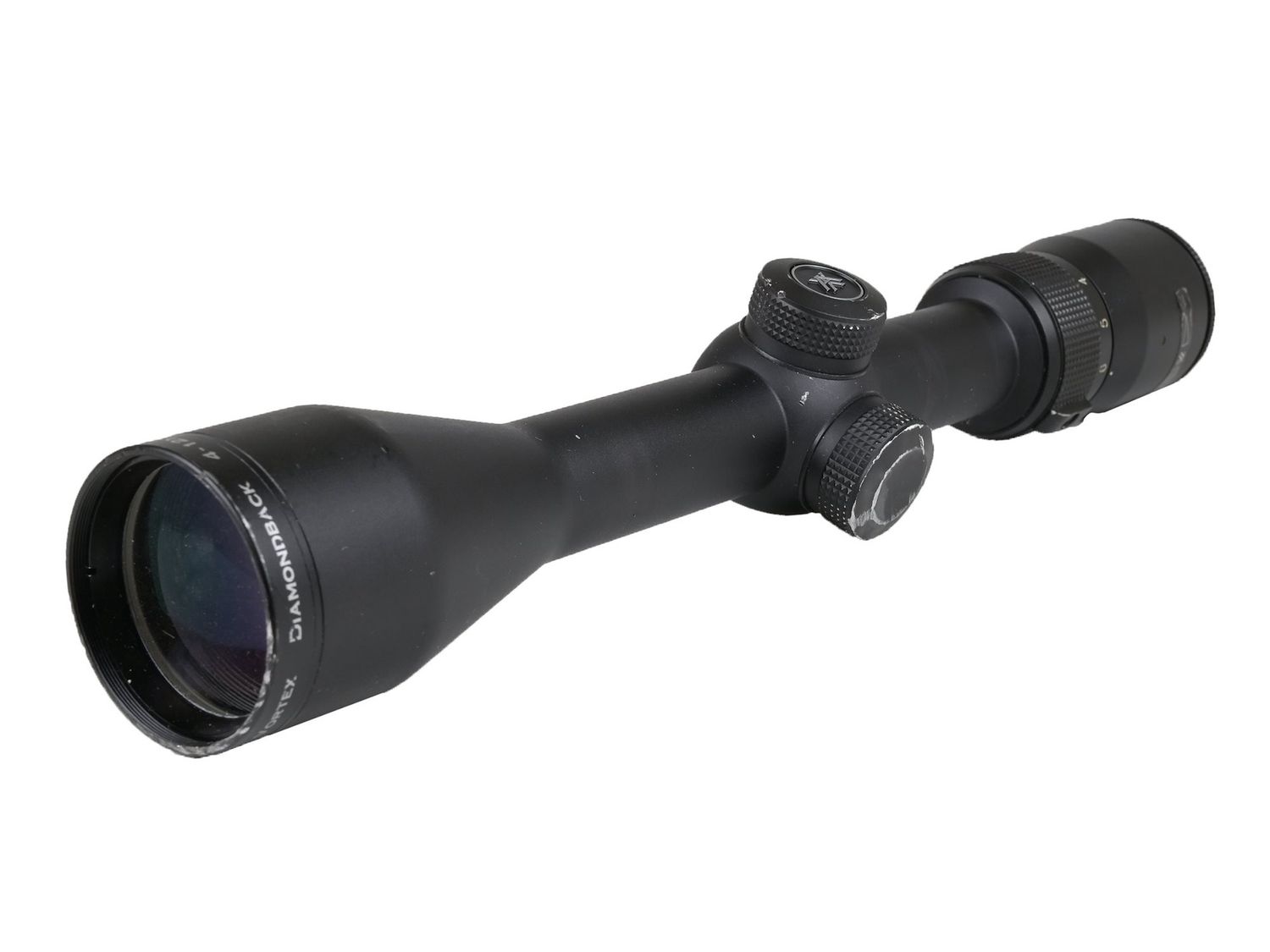

Diamondback 4-12x40 SFP BDC MOA

• Fully Multi-Coated | Proprietary coatings increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces.
• Second Focal Plane | Reticle Scale of reticle maintains the same ideally-sized appearance. Listed reticle subtensions used for estimating range, holdover and wind drift correction are accurate at the highest magnification.

CONSTRUCTION FEATURES

• Tube Size | 1 inch diameter tube offers a versatile blend of adjustment, size and weight for a wide variety of shooting applications.
• Single-Piece Tube | Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness.
• Aircraft-Grade Aluminum | Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.
• Waterproof | O-ring seals prevent moisture, dust and debris from penetrating the binocular for reliable performance in all environments.
• Fogproof | Argon gas purging prevents internal fogging over a wide range of temperatures.
• Shockproof | Rugged construction withstands recoil and impact.
• Hard Anodized Finish | Highly durable hard-coat anodization provides a low-glare matte surface and helps camouflage the shooter's position.
• Capped Reset Turrets | Allow quick re-indexing of the turret (no tool needed) to zero after sighting in the riflescope. Caps provide external protection for turret.

INTERNAL MECHANISM DESIGN

• Precision-Glide Erector System | This system ensures the components in the zoom lens mechanism glide smoothly and cleanly through all magnification ranges.

CONVENIENCE FEATURES

• Fast Focus Eyepiece | Allows quick and easy reticle focusing.

RETICLE

• Dead-Hold BDC (MOA)
• Customized dot design helps eliminate guesswork on holdover and windage corrections. Good for hunting/shooting at varying ranges where estimating holdover is a concern.

Specifications:

• Magnification 4-12x
• Objective Lens Diameter 40 mm
• Eye Relief 3.1 inches
• Field of View 32.4-11.3 ft/100 yds
• Tube Size 1 inch
• Turret Style Capped
• Adjustment Graduation 1/4 MOA
• Travel Per Rotation 15 MOA
• Max Elevation Adjustment 60 MOA
• Max Windage Adjustment 60 MOA
• Parallax Setting 100 yards
• Length 12 inches
• Weight 14.6 oz
